Building with Modbus/BACnet Communication Fan Coil Unit Thermostat

Modern buildings require HVAC systems that do more than simply provide a comfortable indoor temperature. They must also support intelligent management, energy-efficient operation, remote maintenance, and seamless equipment connectivity. As Building Management Systems (BMS) become increasingly common, fan coil unit thermostats supporting standard communication protocols have become essential control devices in hotels, office buildings, hospitals, apartments, schools, and commercial buildings. Compared with traditional standalone thermostats, a fan coil unit thermostat with Modbus and BACnet communication not only provides precise room temperature control but can also be integrated into a centralized management platform for data monitoring, remote control, centralized maintenance, and energy consumption analysis, making building management more efficient.

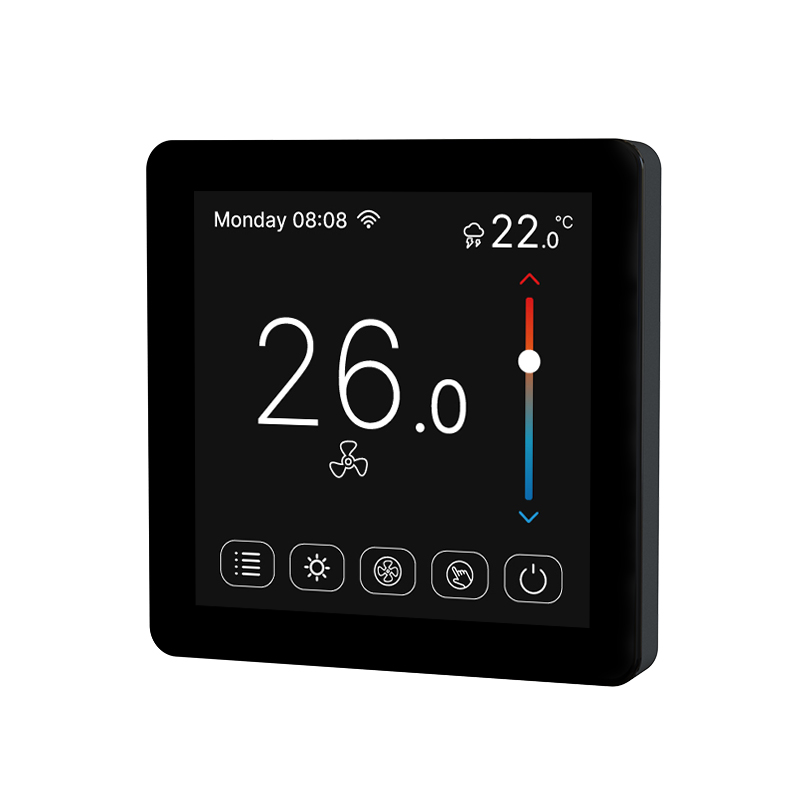

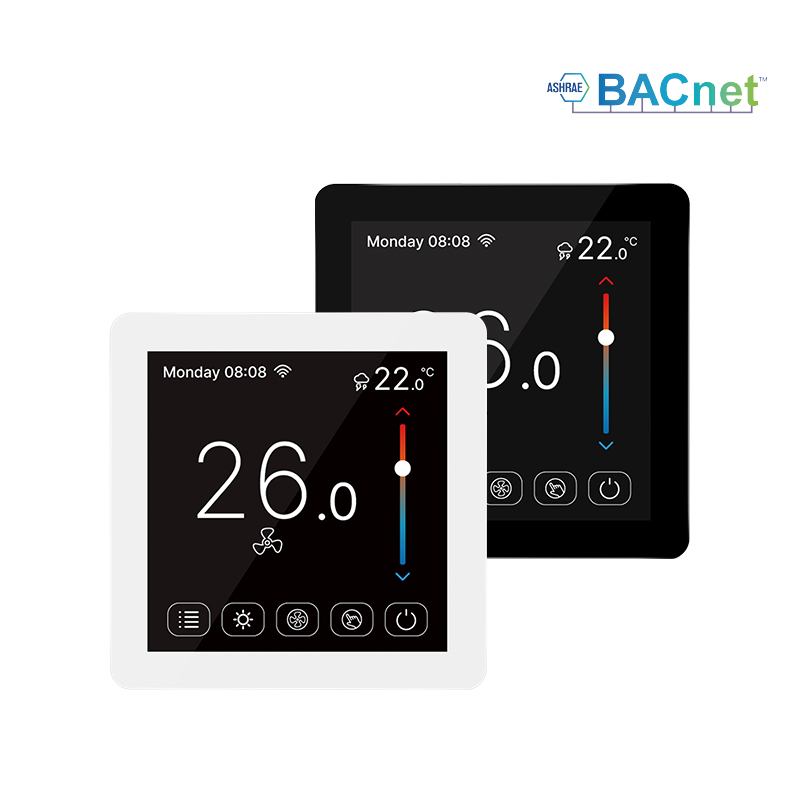

The E-top FT-CS08 (BACnet) Building with Modbus/BACnet Communication Fan Coil Unit Thermostat is specifically designed for 2-Pipe and 4-Pipe fan coil unit systems. It supports both 2-position (On/Off) valve control and 0–10 V analog output control while remaining fully compatible with both three-speed fan motors and EC fan motors. The thermostat adopts high-precision temperature sensing technology to automatically control valves, fan motors, electric heaters, air dampers, and other HVAC equipment according to the user-defined temperature, providing a stable and comfortable indoor environment for various building applications. It also features power-failure memory and offers a wide range of optional functions, including Modbus RTU, BACnet, 7-Day programmable scheduling, WiFi remote control, Keycard control, Child Lock, and External Temperature Sensor support, meeting the intelligent control requirements of different HVAC projects.

Application Scenarios of the Building with Modbus/BACnet Communication Fan Coil Unit Thermostat

Intelligent Air Conditioning Control for Commercial Office Buildings

Large office buildings experience continuous temperature variations throughout the day due to changing occupancy levels, different operating schedules, and varying usage across different areas. If every fan coil unit must be adjusted manually and independently, management workload increases significantly while uneven cooling or heating and unnecessary energy consumption become more likely. A fan coil unit thermostat supporting Modbus/BACnet communication can be directly integrated into the Building Management System (BMS), enabling centralized monitoring and unified control. Facility managers can flexibly adjust operating strategies according to the actual use of different areas, improving workplace comfort while reducing unnecessary energy consumption. For large commercial buildings operating over the long term, this centralized management approach effectively lowers maintenance costs and improves the overall operating efficiency of the HVAC system.

• Supports centralized Building Management System (BMS) control
• Allows remote modification of operating parameters
• Automatically records operating status
• Simplifies centralized equipment maintenance

Comfortable Environment Management for Hotels, Apartments, and Healthcare Buildings

Hotel guest rooms, serviced apartments, and hospital wards require highly stable indoor temperature control. Since occupancy conditions vary from room to room, traditional thermostats make centralized management difficult. By adopting thermostats with BACnet or Modbus communication, facility managers can monitor the operating status of every room in real time and automatically adjust operating modes according to occupancy. When a room is unoccupied, the system automatically enters energy-saving mode. Once occupied, it quickly restores a comfortable indoor temperature. In hospitals and other specialized facilities, the thermostat can also operate together with the Building Management System for 24-hour centralized monitoring, reducing manual inspections while improving overall management efficiency.

• Centralized control of guest rooms
• Smarter energy-saving operation
• Optional Keycard integration
• Optional WiFi remote control

How Does the Building with Modbus/BACnet Communication Fan Coil Unit Thermostat Work?

Intelligent Temperature Detection and Automatic Control

The fan coil unit thermostat is equipped with a high-precision built-in temperature sensor that continuously monitors the indoor ambient temperature and compares it with the user-defined setpoint. When the ambient temperature rises above the set temperature, the system automatically activates the cooling mode. When the ambient temperature falls below the set temperature, the system automatically switches to the heating mode. The entire control process operates automatically without the need for frequent manual adjustments, ensuring a stable indoor temperature while minimizing temperature fluctuations. For applications requiring more flexible installation, an External Temperature Sensor is available as an option, providing more accurate temperature measurement to meet the requirements of different building structures and installation environments.

• Real-time indoor temperature monitoring
• Automatic comparison with the temperature setpoint
• Automatic switching between cooling and heating modes
• Optional External Temperature Sensor

Coordinated Control of Fans, Valves, and the Communication System

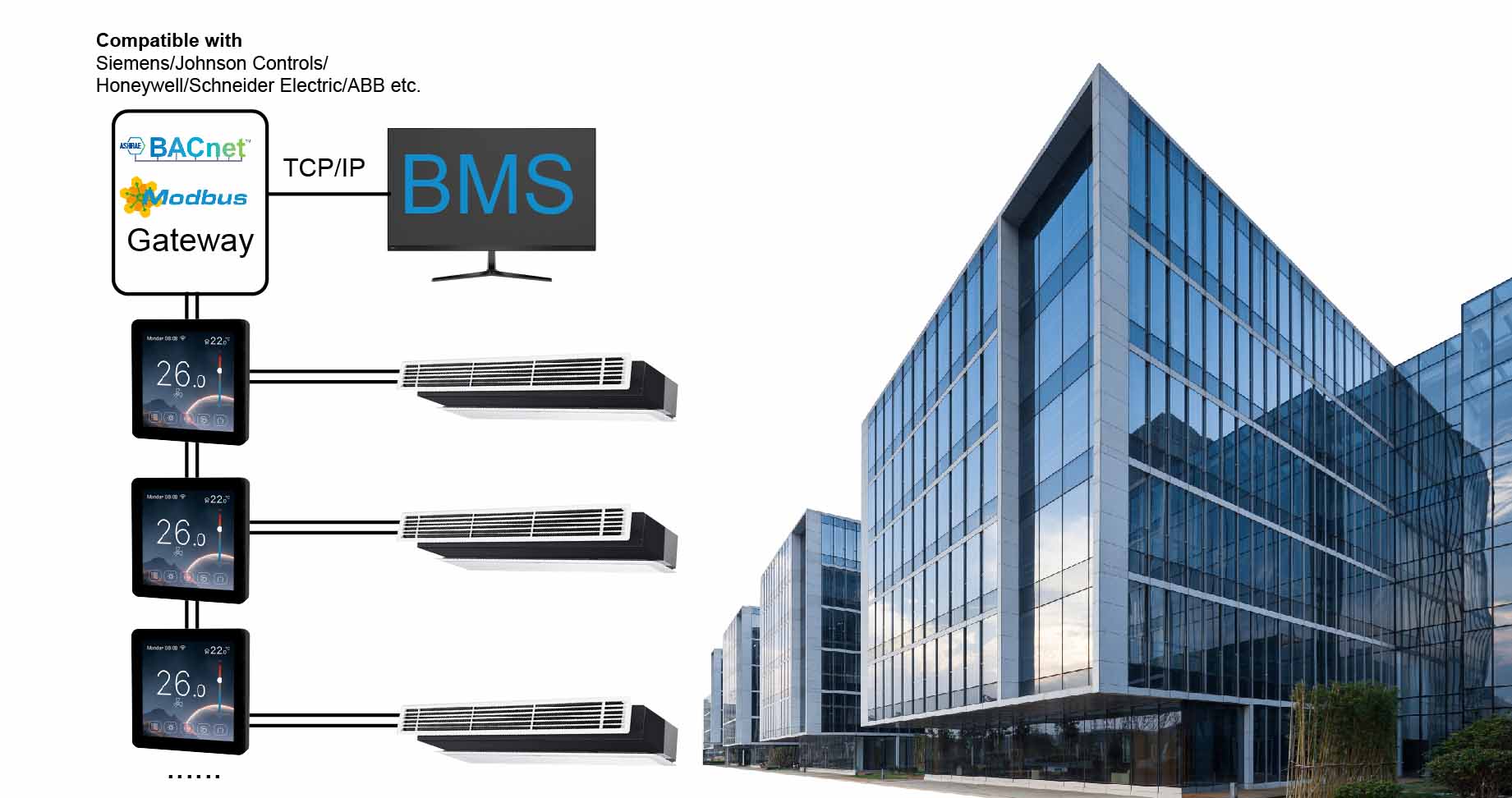

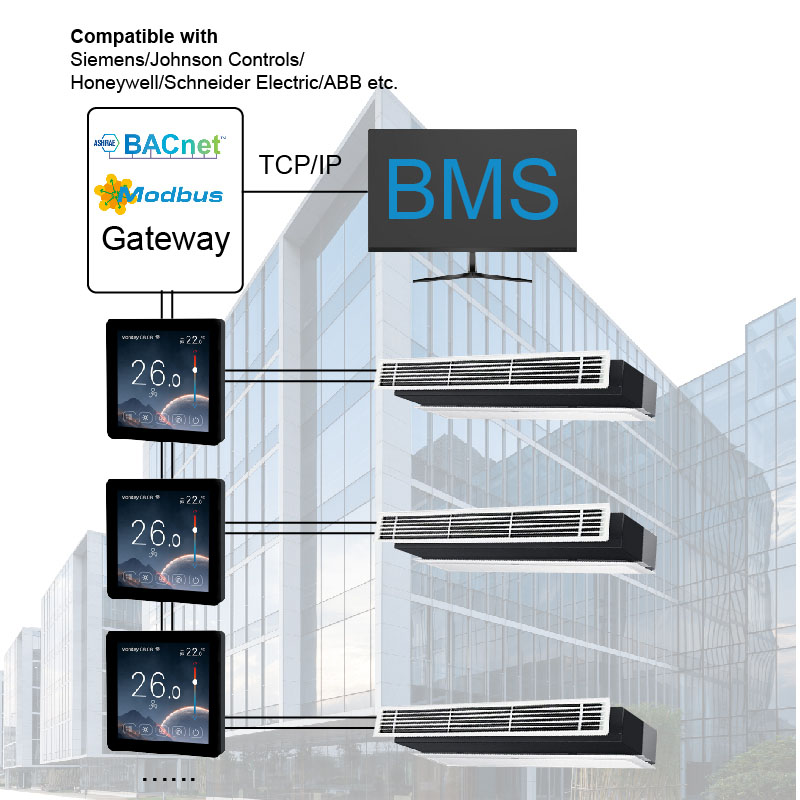

In addition to temperature regulation, the thermostat automatically controls the operating status of fan motors, chilled and hot water valves, electric heaters, and air dampers according to actual system requirements. Whenever the indoor temperature changes, the controller automatically adjusts the fan speed or EC fan output while opening or closing the corresponding valve, ensuring smoother and more efficient heat exchange. All operating data can also be transmitted to the Building Automation System through the Modbus RTU or BACnet communication protocol, allowing facility managers to monitor equipment status in real time, modify operating parameters, perform fault diagnostics, and analyze energy consumption. This creates a fully integrated and coordinated intelligent HVAC control network throughout the building.

• Supports three-speed fan control
• Supports EC fan control
• Supports On/Off and 0–10 V valve control
• Supports Modbus/BACnet communication

What Should You Know Before Purchasing the Building with Modbus/BACnet Communication Fan Coil Unit Thermostat?

Before purchasing a fan coil unit thermostat, it is important to determine whether the building uses a Modbus control platform or a BACnet Building Automation System, as different projects have different communication protocol requirements. While some applications only require standalone temperature control, most commercial buildings prefer centralized management. Confirming the communication platform in advance can significantly reduce commissioning time and simplify system integration. At the same time, it is also necessary to verify whether the project uses a 2-Pipe or 4-Pipe fan coil system and whether the fan coil unit is equipped with a conventional three-speed fan or an EC fan, ensuring full compatibility between the thermostat and the existing HVAC equipment while improving installation efficiency and long-term operational reliability.

• Confirm the communication protocol
• Confirm the FCU system type
• Confirm the fan motor type
• Confirm the control method

Select the Appropriate Functional Configuration According to Project Requirements

Different buildings require different thermostat configurations. Some hotel projects require Keycard integration, while office buildings place greater emphasis on Building Management System communication, and residential projects often prioritize WiFi remote control. The FT-CS08 offers a wide range of optional functions that can be flexibly configured according to the actual requirements of each project. This not only avoids unnecessary features but also helps optimize procurement costs. For OEM and ODM projects, customized appearance, software, and functional configurations are also available to satisfy branding requirements and meet the application needs of different markets.

• Whether WiFi remote control is required
• Whether programmable scheduling is required
• Whether Keycard control is required
• Whether OEM customization is required

Frequently Asked Questions (FAQ)

Q1: Which communication protocols are supported?
A: The thermostat supports BACnet communication and offers Modbus RTU as an optional communication protocol.

Q2: Does it support both 2-Pipe and 4-Pipe systems?
A: Yes. It supports both 2-Pipe and 4-Pipe Fan Coil Unit (FCU) systems.

Q3: Can it control EC fan motors?
A: Yes. The thermostat supports both EC fan motors and traditional three-speed fan motors.

Q4: Will the settings be lost after a power failure?
A: No. The thermostat features Power Failure Memory, ensuring that all settings are retained after power is restored.

Q5: Does it support remote control?
A: Yes. WiFi Remote Control is available as an optional feature.

Q6: Can an external temperature sensor be added?
A: Yes. An External Temperature Sensor is available as an optional accessory.

Q7: Does it support 7-day programmable scheduling?
A: Yes. 7-Day / 4-Period Programmable Scheduling is available as an optional function.

Q8: Is OEM or ODM service available?
A: Yes. We provide customization services for product appearance, software, and functional features.

Product Supporting Advantages

E-top not only supplies the Building with Modbus/BACnet Communication Fan Coil Unit Thermostat, but also provides complete HVAC temperature control solutions to help customers build more efficient and intelligent building climate control systems. The product is designed with full consideration for the reliability, compatibility, and long-term operational stability required by engineering projects. Every thermostat undergoes rigorous testing before delivery and is suitable for hotels, office buildings, commercial complexes, schools, hospitals, apartments, and industrial facilities. With a wide range of optional configurations, the thermostat meets the requirements of different intelligent building control projects while offering customers greater flexibility in product selection.

• Supports OEM/ODM customization
• Wide range of optional functional configurations
• Stable and reliable product quality
• Professional technical support services

Contact Us for Professional Product Selection Guidance or Customized Manufacturing Solutions

Whether you are planning a new building automation project or upgrading an existing fan coil unit control system, E-top can provide professional recommendations based on your project scale, control requirements, and budget. Our experienced technical team can assist with product selection, communication protocol confirmation, functional configuration recommendations, and OEM/ODM customization services, helping ensure smooth project implementation and full compatibility with your existing HVAC system.
