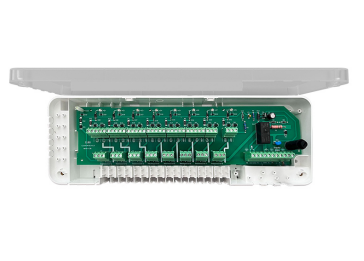

What temperature control modes does an 8-zone wired underfloor heating control box support?

In underfloor heating systems, especially in homes or projects using 8-zone wired control boxes, the temperature control of each zone directly affects the uniformity of room temperature, the frequency of boiler starts, and the proper operation of the water pump. Control boxes like the HR02, which can control up to 16 room thermostats, support boiler and water pump delays, and are expandable with wireless networks and Opentherm, inherently offer considerable flexibility for various temperature control modes. If the temperature control mode is selected appropriately, it not only makes living more comfortable but also significantly reduces energy consumption and equipment wear. Conversely, if the mode is set incorrectly, even with high-performance equipment, problems such as fluctuating temperatures and frequent system starts and stops can easily occur.

Independent Zone Temperature Control Mode

The core and most basic temperature control mode of an 8-zone wired underfloor heating control box is independent zone temperature control.The HR02 supports up to 16 room thermostats, each of which can independently correspond to a zone or room.

Operating Mode: Each room sends an individual command to the control box to turn its thermal actuator on or off based on its own temperature requirements.

Advantages: Different rooms can be set to different temperatures; flexible use without interference; particularly suitable for spaces with different functions such as bedrooms, living rooms, and studies.

In this mode, the 8-zone control box acts like a “zone command center,” precisely controlling the heating status of each zone, making it the preferred temperature control method for most households.

Single-Zone Multi-Circuit Synchronous Control Mode

In some larger rooms, there are often two or more underfloor heating circuits. The HR02 supports one thermostat simultaneously controlling multiple thermal actuators within the same zone.

Operating Mode: One room thermostat simultaneously controls multiple actuators within that zone to turn on or off synchronously.

Applicable Scenarios: Large living rooms, open-plan spaces, commercial or duplex structures.

This mode ensures synchronized operation of underfloor heating circuits within the same space, avoiding localized overheating or cooling and improving overall comfort.

Centralized Start/Stop + Zoned Control Mode

The HR02 control box supports configurable boiler and water pump delay times, enabling a highly practical temperature control mode: centralized start/stop + zoned control.

Working Principle: Whenever any zone requires heating, the control box first starts the boiler; after a delay, it starts the water pump; then, as needed, it activates the thermal actuators for the corresponding zone.

Advantages: Avoids frequent boiler and water pump start/stop, improves system stability, and extends equipment lifespan.

This mode is particularly important when multiple zones are used simultaneously or alternately, and is key to the efficient operation of an 8-zone system.

Constant Temperature Maintenance Mode

In constant temperature maintenance mode, the control box automatically fine-tunes the on/off status of each zone based on feedback signals from the thermostat.

Features: Reduces frequent switching when the temperature approaches the set value; maintains room temperature within a stable range.

Suitable for: Families who spend long periods at home, temperature-sensitive elderly people, or children.

Combined with the HR02’s stable wired communication, this mode excels in accuracy and reliability.

Energy-Saving Linked Temperature Control Mode

When the HR02 is linked with the boiler via the Opentherm interface (optional), a more advanced energy-saving temperature control mode can be achieved.

Operating Mode: The control box not only controls “on or off” but also communicates with the boiler regarding output power.

Advantages: Avoids full-load boiler operation, improves energy efficiency, and ensures smoother system operation.

This mode is more suitable for users with high energy consumption requirements and more complete system configurations.

Hybrid Temperature Control Mode with Wired as the Main Function and Wireless Extension

The HR02 supports wireless network connection (optional), enabling the 8-zone wired control box to have hybrid temperature control capabilities.

Features: The wired thermostat is responsible for stable control, while the wireless function is used for remote management or supplementary control.

Benefits: Does not affect the stability of the original wired system; improves ease of use; leaves ample room for future upgrades.

The HR02’s 8-zone underfloor heating wired control box supports a variety of practical and mature temperature control modes, including independent zone temperature control, single-zone multi-loop synchronous control, centralized start-stop linkage, constant temperature maintenance, Opentherm energy-saving linkage, and a hybrid control mode combining wired and wireless. These modes work together to ensure the system meets the individual needs of different rooms while guaranteeing stable, energy-efficient operation of the boiler and water pump. For users, the truly important factor is not the number of modes, but whether they are selected and configured appropriately based on their family structure, usage habits, and equipment configuration.
